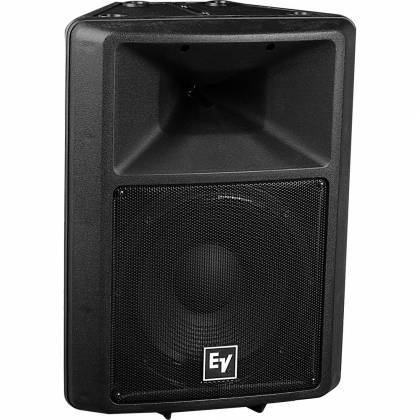

SX100+ 200 Watt 12'' Two-Way Passive Speaker

PRE-OWNED Condition 9.5/10

Electro-Voice SX100 Details

The Sx100+ 12" Passive PA Speaker from Electro Voice lets vocals cut through the noise without losing clarity.

The Electro-Voice ® Sx100+ is a 200-watt, 12-inch two-way, high efficiency, constant-directivity portable speaker system.

Features

• Compact, portable sound reinforcement
• Ideal for live sound, speech, DJ, AV, institutional use
• 1.25-inch DH3/2010A titanium HF compression driver
• 65º x 65º Constant-directivity Varipath horn
• High efficiency, 127 db maximum SPL
• Power handling: 200 W continuous, 800 W peak
• Ring-Mode Decoupling (RMD) for increased intelligibility
• Trapezoidal black or white copolymer enclosure
• Integral monitor stand, pole mount, rigging points

Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state- of-the-art professional loudspeaker system. Its performance and physical design make it perfect for many applications requiring quality sound in portable and fixed environments.

The high-frequency section of the Sx100+ utilizes a molded- in, 65° x 65° constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet "cut through" in reverberant, noisy rooms. Coverage pattern is uniform, sound quality off-axis is very well maintained, even at 45° off axis (a 90° total coverage angle).

The horn's unique, VaripathTM throat geometry helps driver output to the corners of the room, areas which are not described in the usual specifications of horizontal and vertical coverage angles. This results in more uniform coverage throughout, even to those parts of the audience that typically do not receive the strongest coverage.

The Sx100+'s high-frequency horn is driven by the DH3, a one-inch-throat, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePath TM phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

Specifications

• Freq. Response (-10 dB): 60 Hz - 25 kHz
• Sensitivity: 98 dB
• Max SPL: 127 dB
• Impedance: 8 ohms Nominal, 5.6 ohms Min.
• Horizontal Coverage: 65°
• Vertical Coverage: 65°
• Power Handling: 200W Continuous, 800W Peak
• LF Transducer: "12" (300mm)"
• HF Transducer: "1" (25mm) exit DH3 Comp. Driver"
• Connectors: Neutrik Speakon ®
• Enclosure Material: Copolymer
• Grille: Powder Coated Steel
• Dim (H x W x D): 23.1" x 16.9" x 12.3" (586 x 429 x 312mm)
• Net Weight: 32 lbs (14.5 kg)
• Shipping Weight: 35 lbs (15.9 kg)

This passive PA speaker is perfect for live sound applications.

Canadian Manufacturer Warranty

Electro-Voice - Bosch provides a warranty to the final customer (consumer) under the conditions stated herein that the products are free of defects in material and workmanship.  The warranty period for ELECTRO-VOICE products is as follows and from the invoice date:

90 days unconditional in store warranty PLUS parts and labour coverage for the following period.

• Three for powered loudspeakers
• Five years for non-powered loudspeakers
• One year for loudspeaker accessories & hardware
• Two years for R300 wireless microphones
• Three years for RE3 wireless microphones
• Three years for all other products

The product warranty applies exclusively to ELECTRO-VOICE products of Bosch Building Technologies.
